Thermal Flow Sensors TA |
|
|
|
Probe designs TA20
|
for measuring standard flow velocity, standard
volume flow and temperature of the medium |
|
|
|
probe diameter 20 mm with Pt100 sensor
element |
|
|
|
|
|
|
measuring range 0.08...60 m/s |
|
|
|
|
|
time constant approx. 20 s |
|
|
|
|
|
maximum working pressure: up to 10 bar |
|
|
|
|
|
working temperature range: -10 °C...+240 °C |
|
|
|
|
|
materials: stainless steel, epoxy
resin, glass |
|
|
can be sterilized |
|

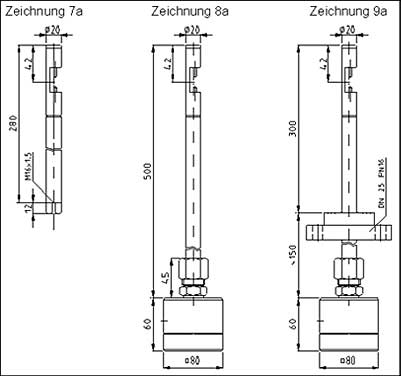

Probe designs TA20 |
|
|
|
|
|
|
|
|
Drawing ZG 7a
extendable probe, for use with transducer U10 or
system instrument VT-TA |
|
|
|
|
|
|
Drawing ZG 8a
probe with connector box, e.g. for installation in
pipelines from Di 80 with probe guide pieces;
available on request with transducer U10
embedded in the connector box |
|
|
|
|
|
|
Drawing ZG 9a
probe with connector box and connecting flange
DN25 PN16, e.g. for installation in pipe lines from
Di 80 mm;
available on request with transducer
U10 embedded in the connector box |
|
|
|
|
|
|
|
|
probe guide pieces for
insertion of probes in
pipelines and ducts |
|
|
|
|
|
for measuring standard flow
velocity, standard volume flow and temperature of the medium |
|
|
|
probe diameter 20 mm with Pt100 sensor
element |
|
|
|
|
|
|
measuring range 0.08...60 m/s |
|
|
|
|
|
time constant approx. 20 s |
|
|
|
|
|
maximum working pressure: up to 10 bar |
|
|
|
|
|
working temperature range: -10 °C...+240 °C |
|
|
|
|
|
materials: stainless steel, epoxy resin, glass |
|
|
|
|
|
can be sterilized |
|
Probe designs TA20 |
|
|
|
|
|
|
|
|
Drawing ZG
7a
extendable probe, for use with transducer U10 or
system instrument VT-TA
|
|
|
|
|
|
|
Drawing ZG 8a
probe with connector box, e.g. for installation in
pipelines from Di 80 with probe guide pieces;
available on request with transducer U10
embedded in the connector box |
|
|
|
|
|
|
Drawing ZG 9a
probe with connector box and connecting flange
DN25 PN16, e.g. for installation in pipe lines from
Di 80 mm;
available on request with transducer
U10 embedded in the connector box |
|
|
Accessories for thermal flow sensors
|
|
|
|
|
|
|
|
|
|
|
probe guide
pieces for insertion of probes in
pipelines and ducts
|
|
|
|
|
|
instantaneous values every second.
Display of standard velocity v,
standard volume flow V/t or temperature (resolution 1 °C),
selectable. Display of instantaneous value in the START and also
START/STOP mode also
with long-term measurement. Display units: m/s, m3/h, l/min, °C |
|
|
|
|
|
power supply by 9 V compound battery,
running time approx. 50 hours |
|
|
|
power supply by 9V battery or plug-in
power supply |
|
|
|
analog output 0 . 4 V = 0 . x m/s |
|
|
|
data and measured value storage for 500
data records. When being stored
the data records are automatically marked with a group number (max. 99)
and serial number |
|
|
|
|
|
optional accessories: RS232 / V24
adapter for data transmission to an IBM
compatible PC / μP-Flowtherm extension cable 3 m or 5 m long, also with
waterproof connector / μP-Flowtherm Y cable for
connection to two sensors at the input of the μP-Flowtherm
/ μP-Flowtherm carrying case / μP-
Flowtherm light metal carrying case / 9 V battery |
|
|
